GeneralUpdate.PacketTool

Introduction

GeneralUpdate.Tools is a desktop application developed using Avalonia that supports Windows / Linux / Mac cross-platform. This tool provides developers with three core functional modules for managing software updates and extensions.

Repository URL
https://github.com/GeneralLibrary/GeneralUpdate.Tools

Feature	Supported	Remarks
Build patch package	Yes	Compares the previous version with the current version to identify updated, newly added, or deleted files.
Build OSS version configuration	Yes	Easily generates OSS version configuration files.
Extension Manager	Yes	Package and manage application extensions.

Feature Descriptions

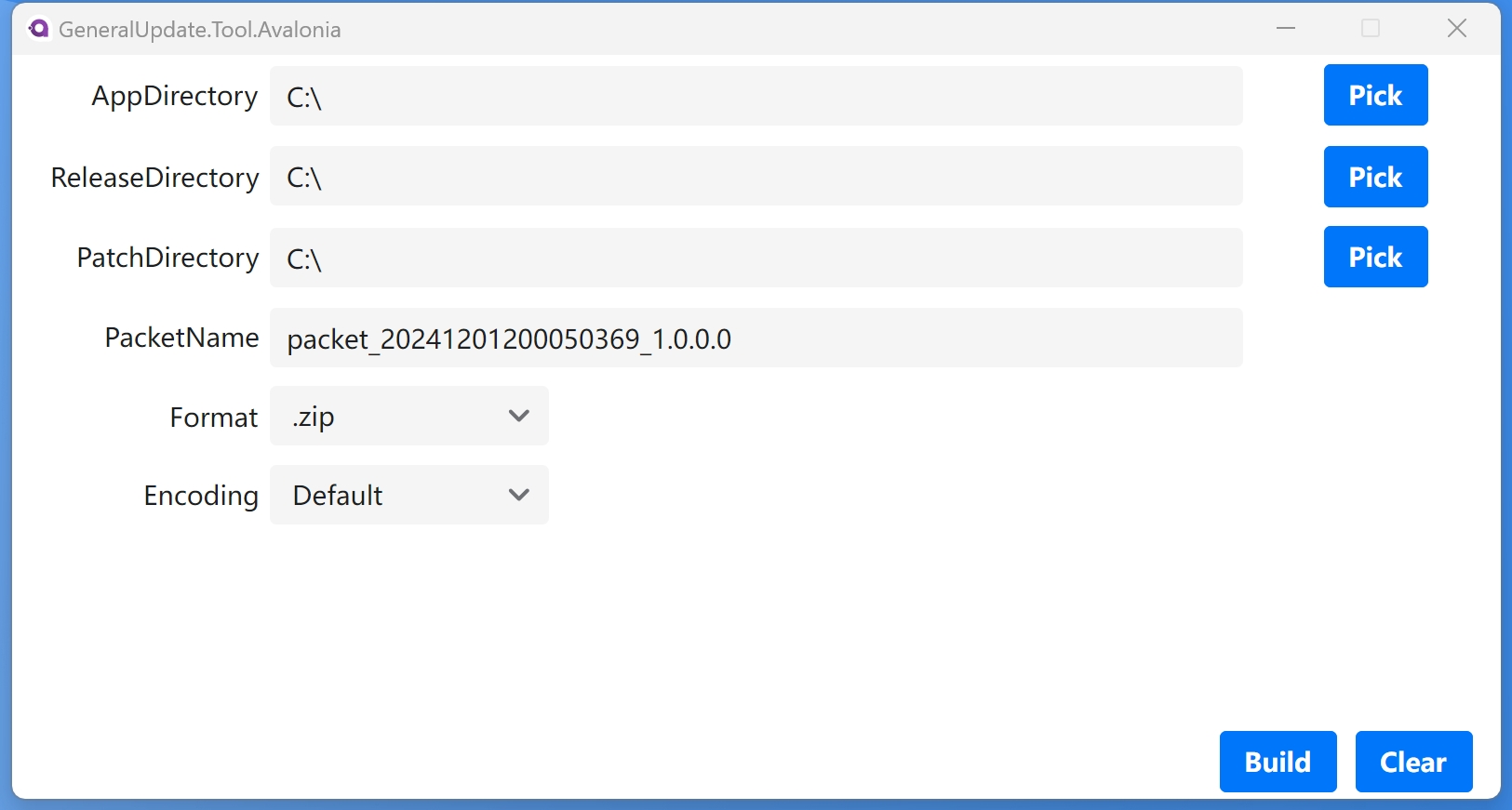

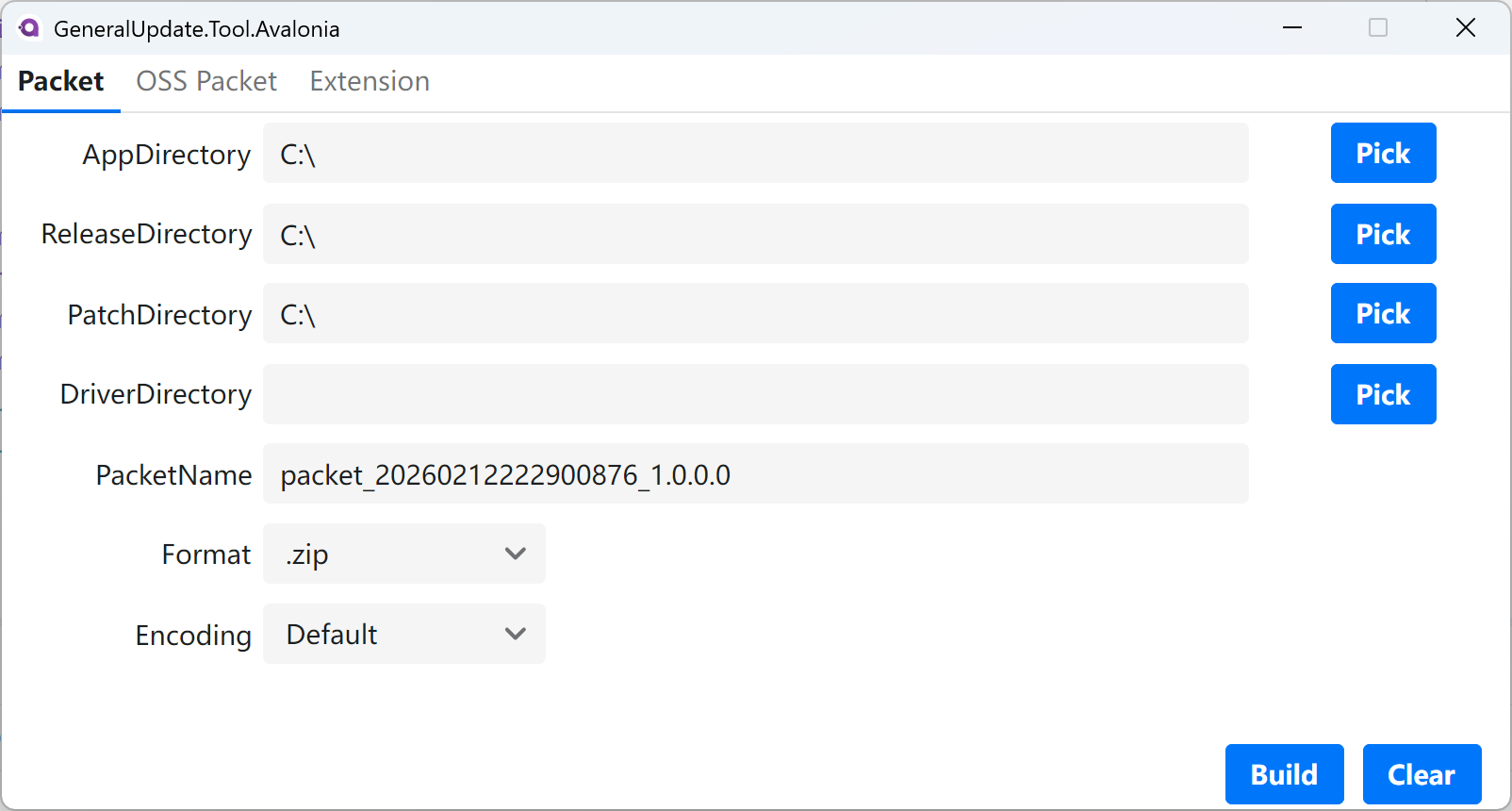

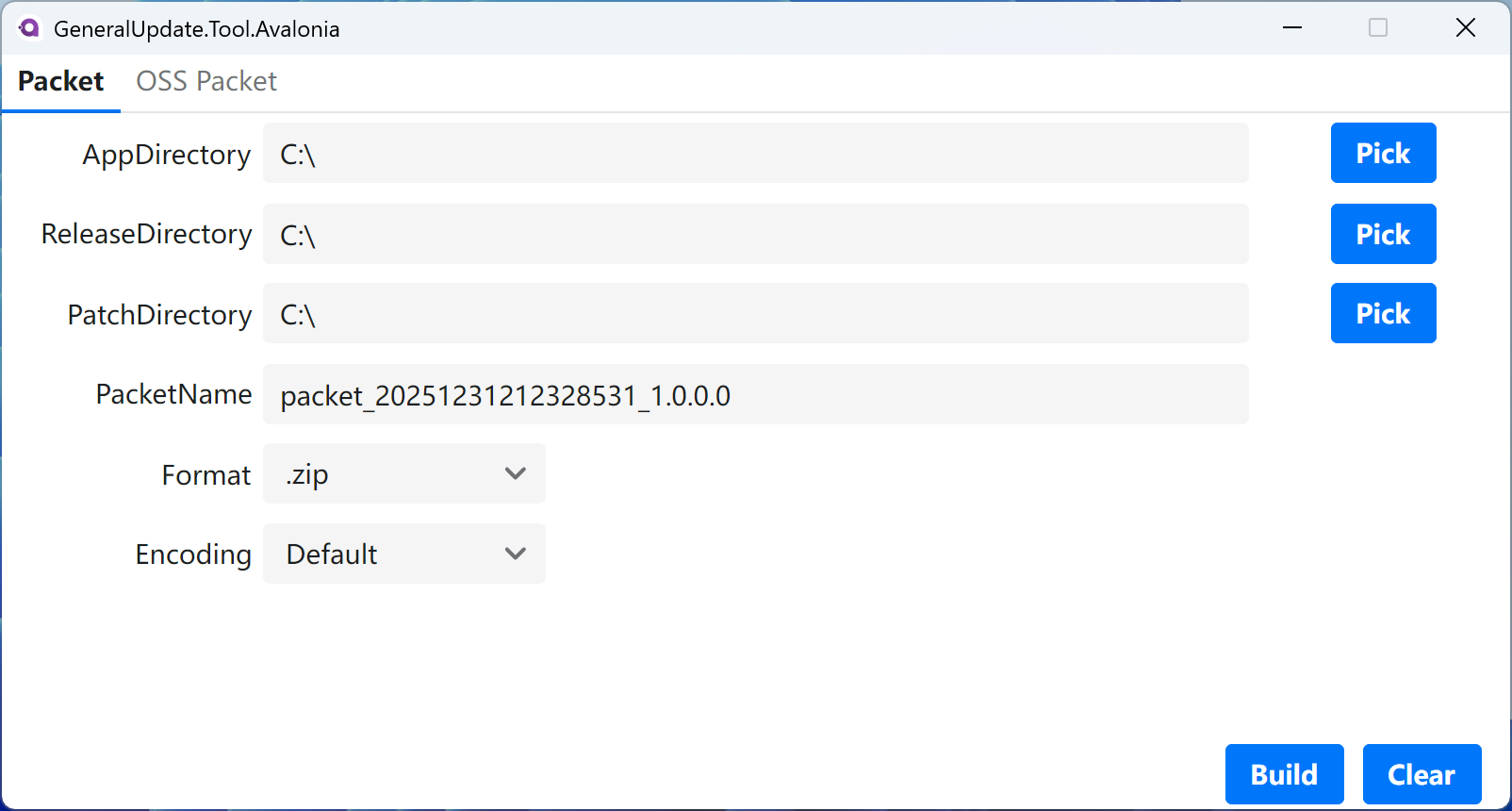

1. Build Patch Package

Function Introduction

The Patch Package Builder is used to create differential update packages. By comparing the old version with the new version, it only packages the changed files, significantly reducing the update package size and download time.

Parameter Description

Name	Remarks
Source path	Path to the folder of the previous version.
Target path	Path to the folder of the current version.
Patch path	Path where the final update patch package will be generated.
Build	Recursively compares all project files (DLL, exe, etc.) in the Source path and Target path folders. Analyzes the list of files to be updated through binary difference check and incremental check, then packages the update files according to the folder structure.
Clear	Clears the currently entered content.

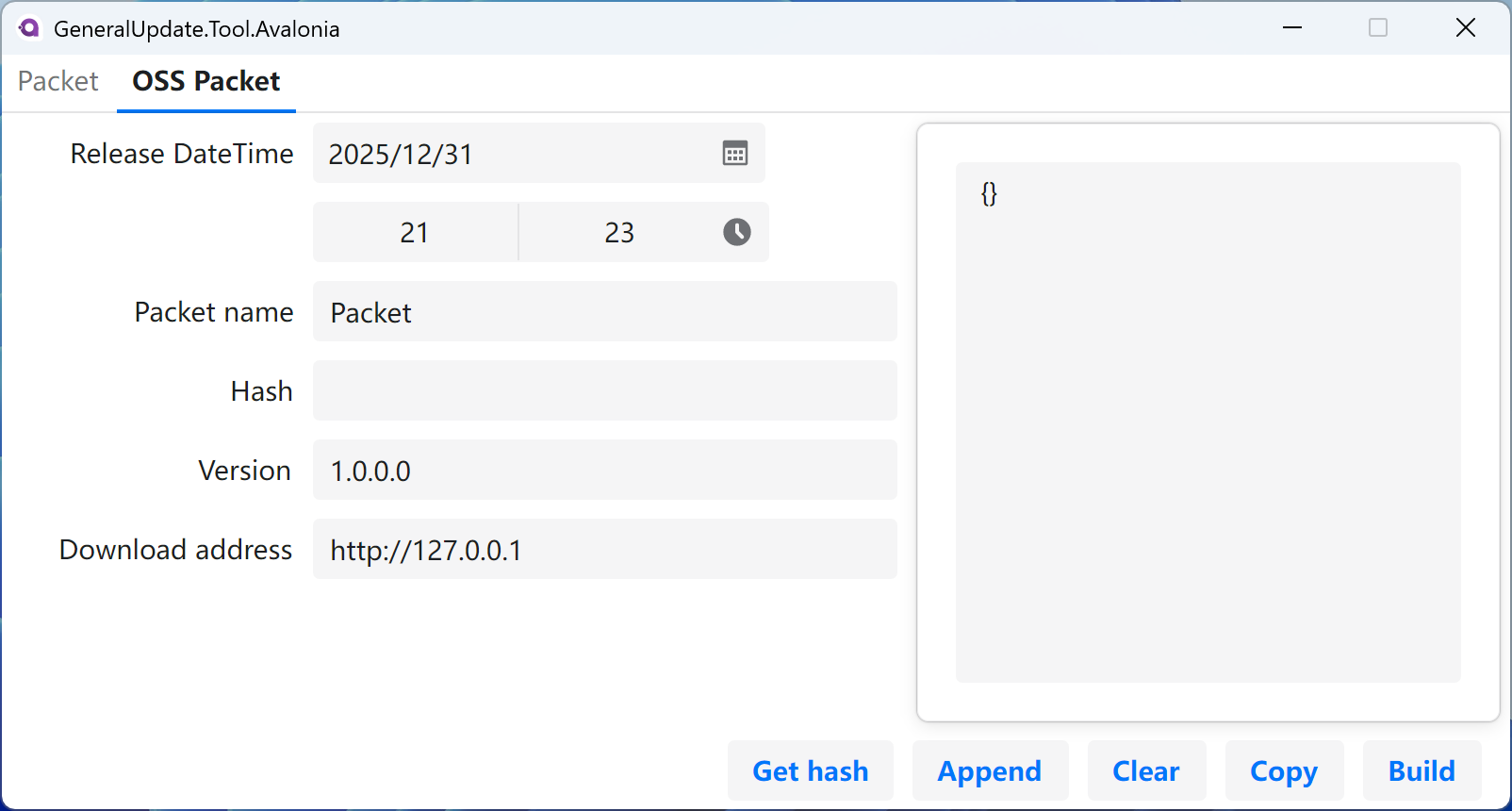

2. Build OSS Version Configuration

Function Introduction

The OSS Version Configuration Builder is used to generate version.json configuration files, which contain metadata information about the update package, informing the client application how to obtain and verify the update package.

Parameter Description

Name	Remarks
Release date time	Release time of the update package.
PacketName	Name of the update package.
Hash	Hash value of the update package (for integrity verification).
Version	Version number of the update package.
Download address	Download URL of the update package.
Get hash	Function to retrieve the hash value of the update package.
Append	Appends new update information to the existing version details.
Clear	Clears all filled-in content.
Copy	Copies the generated content to the clipboard.
Build	Generates the OSS version configuration file (.json) to the local disk.

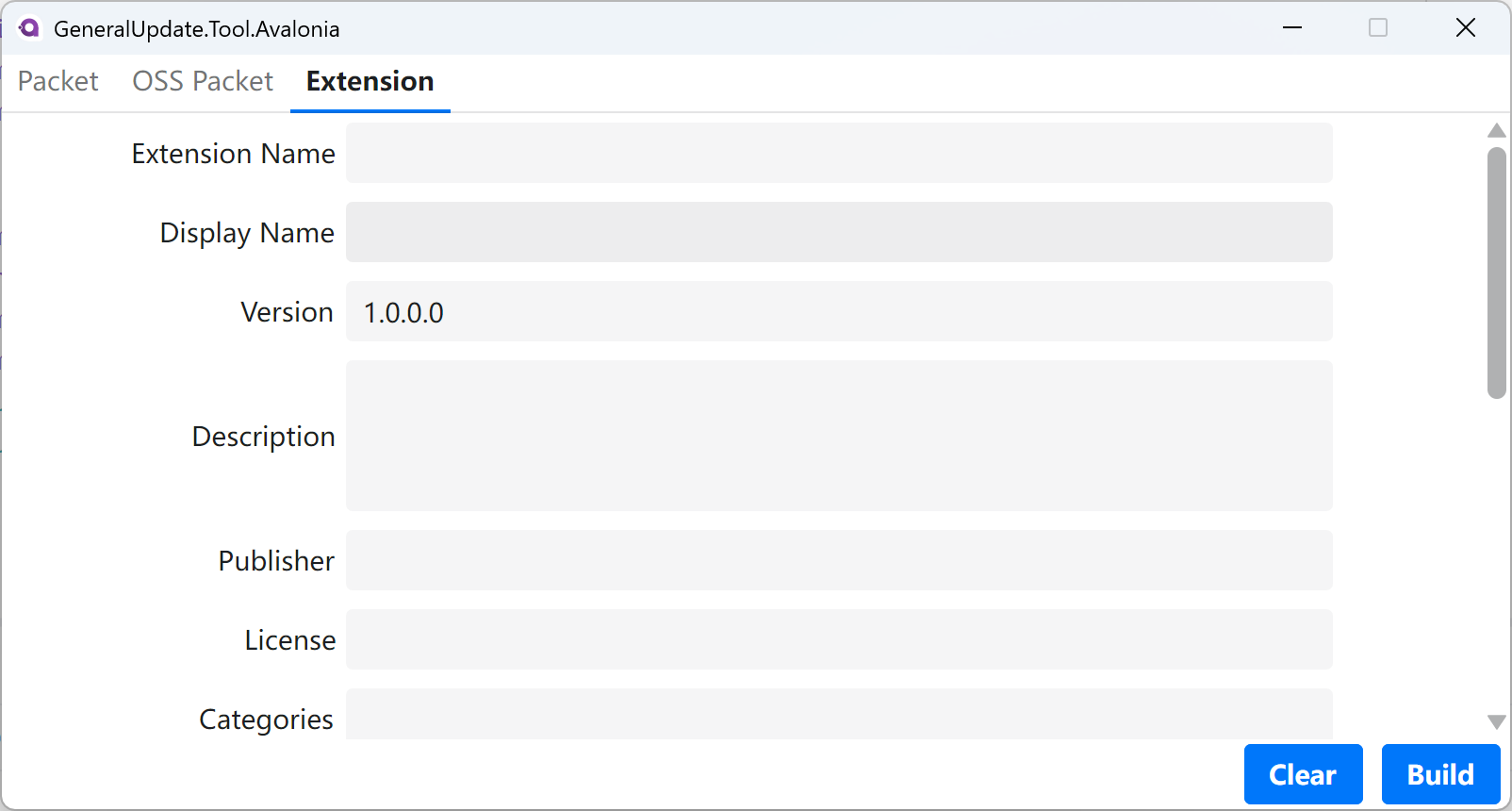

3. Extension Manager

Function Introduction

The Extension Manager (ExtensionView) is one of the core features of GeneralUpdate.Tools, used to package application extensions into distributable standard formats. This tool automatically creates extension packages containing all necessary metadata, supports platform-specific configurations, dependency management, and custom properties, making it ideal for building plugin systems and extension marketplaces.

Core Features

Complete Metadata Management: Supports standard fields such as extension name, version, description, publisher, license, etc.
Platform Support: Can specify target platforms (Windows / Linux / MacOS)
Version Compatibility: Define minimum and maximum host version requirements
Dependency Management: Declare dependencies on other extensions
Automatic Packaging: Automatically compress extension directory and generate manifest.json
Custom Properties: Supports adding additional key-value pair metadata
Category Tags: Organize and discover extensions through category tags

Extension Manager Usage Guide

Basic Information Fields

Extension Name

Description: Unique identifier for the extension. It is recommended to use lowercase letters and hyphens without spaces.

Example: my-awesome-plugin, data-exporter

Display Name

Description: User-friendly display name that will be shown in extension lists and detail pages.

Example: My Awesome Plugin, Data Exporter Tool

Version

Description: Extension version number. It is recommended to follow Semantic Versioning (SemVer) specification in the format Major.Minor.Patch.Build.

Example: 1.0.0.0, 2.1.3.0

Description

Description: Detailed description of the extension's functionality, telling users the purpose and features of the extension. Supports multi-line text.

Example:

This extension adds powerful data export capabilities to your application,
supporting multiple formats including CSV, Excel, and JSON.

Publisher

Description: Publisher name or organization identifier of the extension.

Example: YourCompany, john-doe, awesome-dev-team

License

Description: Open source license identifier used by the extension.

Example: MIT, Apache-2.0, GPL-3.0, BSD-3-Clause

Path Configuration

Extension Directory

Description: Source directory path containing all files of the extension. All files in this directory will be packaged into the final extension package.

Operation: Click the "Pick" button to select a folder

Directory Structure Example:

MyExtension/
  ├── bin/
  │   ├── MyExtension.dll
  │   └── dependencies/
  ├── resources/
  │   ├── icons/
  │   └── templates/
  └── README.md

Export Path

Description: Save directory for the final generated extension package (.zip file).

Operation: Click the "Pick" button to select save location

Output Format: Generated file name format: {ExtensionName}_{Version}.zip

Example: my-awesome-plugin_1.0.0.0.zip

Dependencies

Description: List of IDs of other extensions that this extension depends on, separated by commas. The extension system will automatically handle dependency resolution and installation order.

Format: Comma-separated list of extension GUIDs

Example:

550e8400-e29b-41d4-a716-446655440001,
550e8400-e29b-41d4-a716-446655440002

Use Cases:

Extension requires functionality provided by other extensions
Sharing common libraries or resources
Ensuring correct loading order

Version Compatibility

Min Host Version

Description: Minimum host application version supported by the extension. If the host version is lower than this value, the extension will be marked as incompatible.

Format: Semantic version number (without build number)

Example: 1.0.0, 2.5.0

Max Host Version

Description: Maximum host application version supported by the extension. If the host version is higher than this value, the extension will be marked as incompatible.

Format: Semantic version number (without build number)

Example: 3.0.0, 2.9.9

Compatibility Check Logic:

MinHostVersion ≤ Host Version ≤ MaxHostVersion

Example Scenario:

Host Version: 2.0.0
Min Host Version: 1.5.0
Max Host Version: 2.5.0
Result: ✓ Compatible

Platform and Format

Format

Description: File format of the extension package. Currently fixed as .zip format, this is a read-only field.

Value: .zip (Read-only)

Release Date

Description: Release date of the extension. Used for version tracking and displaying release timeline.

Operation: Use the calendar picker to select a date

Platform

Description: Target operating system platform supported by the extension. Selecting the correct platform ensures that the extension is only installed and run on compatible systems.

Available Options:

Windows - Only supports Windows operating system
Linux - Only supports Linux operating system
MacOS - Only supports MacOS operating system

Selection Guide:

If the extension uses platform-specific APIs or libraries, select the corresponding platform
Cross-platform extensions can create separate versions for each platform
Platform selection affects the visibility and installability of extensions on different operating systems

Options

Pre-release

Description: Mark whether this extension version is a pre-release version (such as Alpha, Beta, RC). Pre-release versions are typically used for testing and early access.

Checkbox: Check to indicate pre-release

Use Cases:

Internal test version
Public beta version
Release candidate version

Impact:

Pre-release versions may be displayed or marked separately in extension marketplaces
Users can choose whether to receive automatic updates for pre-release versions

Custom Properties

Enable Custom Properties

Description: When enabled, you can add additional key-value pair metadata for the extension, used to store extension-specific configurations or information.

Checkbox: Check to show custom properties input area

Add Custom Properties

Operation Steps:

Enter Property Key: Enter the property name in the "Property" field
- Recommended to use camelCase or hyphen-case
- Examples: maxConnections, default-theme, apiEndpoint
Enter Property Value: Enter the corresponding value in the "Value" field
- Supports strings, numbers, and various other values
- Examples: 100, dark, https://api.example.com
Click Add: Click the "Add" button to add the property to the list
Manage Properties:
- View added properties
- Click "Remove" to delete unwanted properties

Use Cases:

Store extension-specific configuration options
Record extension metadata information
Pass initialization parameters
Store extension API endpoints or resource paths

Examples:

{
  "maxConcurrentTasks": "5",
  "defaultLanguage": "en-US",
  "apiBaseUrl": "https://api.myextension.com",
  "enableDebugMode": "false"
}

Operation Workflow

Complete Steps to Create an Extension Package

Step 1: Prepare Extension Files

Ensure your extension directory contains all necessary files:

Assembly files (DLLs, executables)
Resource files (icons, templates, configuration files)
Dependency libraries
Documentation files (README, LICENSE)

Step 2: Open Extension Manager

Launch GeneralUpdate.Tools
Click the "Extension" tab at the top
Enter the Extension Manager interface

Step 3: Fill in Basic Information

Fill in the following fields according to the field descriptions above:

Extension Name
Display Name
Version
Description
Publisher
License
Categories

Step 4: Configure Paths

Select Extension Directory:
- Click the "Pick" button next to "Extension Directory"
- Browse and select the folder containing extension files
Select Export Path:
- Click the "Pick" button next to "Export Path"
- Select the directory to save the generated extension package

Step 5: Configure Dependencies and Compatibility (Optional)

Add Dependencies (if applicable):
- Enter the GUID of dependent extensions in the "Dependencies" field
- Separate multiple dependencies with commas
Set Version Compatibility:
- Fill in "Min Host Version"
- Fill in "Max Host Version"

Step 6: Select Platform and Options

Select Target Platform:
- Select Windows, Linux, or MacOS from the "Platform" dropdown list
Set Release Date:
- Use the calendar picker to select the release date
Mark Pre-release Version (if applicable):
- Check the "Pre-release" checkbox

Step 7: Add Custom Properties (Optional)

Check "Enable Custom Properties"
Add key-value pairs in the input boxes
Click the "Add" button to add each property
Add multiple custom properties as needed

Step 8: Build Extension Package

Review All Information:
- Ensure all required fields are correctly filled in
- Verify that paths are correct
Click Build Button:
- Click the "Build" button at the bottom
- Wait for the packaging process to complete
Verify Success:
- A success message will be displayed with the file name and location
- The generated extension package is located in the export path

Step 9: Verify Extension Package

After generation, verify that the extension package contains:

All source files (compressed from extension directory)
manifest.json file (automatically generated)

You can open the .zip file with a decompression tool to inspect:

MyExtension_1.0.0.0.zip
  ├── manifest.json          ← Extension metadata
  ├── bin/
  │   └── MyExtension.dll
  ├── resources/
  └── README.md

Clear Form

If you need to start over or clear all entered content:

Click the "Clear" button at the bottom
All fields will be reset to default values
Custom properties list will be cleared

Output Results

Generated Extension Package Structure

The .zip file generated by the Extension Manager has the following structure:

ExtensionName_Version.zip
  ├── manifest.json                    ← Extension metadata
  ├── [All files and folders from source directory]
  └── ...

manifest.json File Content

The manifest.json file contains all extension metadata. Example structure:

{
  "Name": "my-awesome-plugin",
  "DisplayName": "My Awesome Plugin",
  "Version": "1.0.0.0",
  "Description": "This extension adds powerful features to your application",
  "Publisher": "YourCompany",
  "License": "MIT",
  "Categories": ["Tools", "Productivity"],
  "Dependencies": "550e8400-e29b-41d4-a716-446655440001",
  "MinHostVersion": "1.0.0",
  "MaxHostVersion": "2.0.0",
  "Format": ".zip",
  "ReleaseDate": "2026-02-12T00:00:00",
  "IsPreRelease": false,
  "Platform": {
    "DisplayName": "Windows",
    "Value": 1
  },
  "FileSize": 1048576,
  "CustomProperties": {
    "maxConnections": "100",
    "apiEndpoint": "https://api.example.com"
  }
}

Field Mapping Description

UI Field	JSON Field	Data Type	Description
Extension Name	Name	string	Extension unique identifier
Display Name	DisplayName	string	Display name
Version	Version	string	Version number
Description	Description	string	Extension description
Publisher	Publisher	string	Publisher
License	License	string	License
Categories	Categories	array	Category list
Dependencies	Dependencies	string	Dependencies (comma-separated)
Min Host Version	MinHostVersion	string	Minimum host version
Max Host Version	MaxHostVersion	string	Maximum host version
Format	Format	string	File format
Release Date	ReleaseDate	DateTime	Release date
Pre-release	IsPreRelease	boolean	Is pre-release
Platform	Platform	object	Platform information
Custom Properties	CustomProperties	object	Custom properties dictionary

Best Practices

Naming Conventions

Extension Name:
- Use lowercase letters and hyphens
- Avoid spaces and special characters
- Keep it concise and descriptive
- ✓ Correct: data-exporter, theme-customizer
- ✗ Incorrect: Data Exporter, Theme@Customizer
Version Number:
- Follow Semantic Versioning
- Format: Major.Minor.Patch.Build
- Example: 1.0.0.0, 2.1.3.5

Directory Organization

Maintain a clear extension directory structure:

MyExtension/
  ├── bin/                    ← Binary files
  │   ├── MyExtension.dll
  │   └── dependencies/
  ├── resources/              ← Resource files
  │   ├── icons/
  │   ├── templates/
  │   └── localization/
  ├── docs/                   ← Documentation
  │   └── README.md
  └── LICENSE                 ← License

Version Compatibility Management

Set Reasonable Version Range:
- Don't set too narrow version range
- Consider backward compatibility
- Example: Min 1.0.0, Max 2.0.0 (Support all 1.x versions)
Major Version Updates:
- When major changes occur in the host application, update Min/Max Host Version
- Create new extension versions for new major versions

Dependency Management

Minimize Dependencies:
- Only declare necessary dependencies
- Avoid circular dependencies
Document Dependencies:
- Explain in the description why these dependencies are needed
- Provide ways to obtain dependencies

Custom Properties Usage

Use Cases:
- Store extension-specific configurations
- Record technical requirements of the extension
- Pass initialization parameters
Naming Recommendations:
- Use camelCase
- Keep key names concise and clear
- Add prefixes to avoid conflicts

Testing and Validation

Pre-packaging Checks:
- ✓ Verify all files are complete
- ✓ Check version number is correct
- ✓ Confirm dependencies are accurate
- ✓ Test extension runs on target platform
Post-packaging Verification:
- ✓ Extract and view file structure
- ✓ Check manifest.json content
- ✓ Verify file size is reasonable
- ✓ Install and test in target environment

Release Management

Pre-release Versions:
- Use pre-release flag for internal testing
- Collect feedback before releasing stable version
Version Updates:
- Maintain version history
- Record changelog in description
- Provide upgrade guidance from old versions

Troubleshooting

Common Issues

Issue 1: Build Failed

Possible Causes:

Extension directory does not exist or is inaccessible
No write permission for export path
Insufficient disk space
Extension directory is empty

Solutions:

Verify the extension directory path is correct
Check write permissions for the export path
Ensure sufficient disk space
Confirm the extension directory contains files

Issue 2: Validation Error

Possible Causes:

Required fields not filled
Version number format is incorrect
Invalid path format

Solutions:

Check all required fields (name, version, directory, export path)
Use correct version number format (e.g., 1.0.0.0)
Ensure paths use correct format

Issue 3: Generated Package Cannot Be Extracted

Possible Causes:

Packaging process was interrupted
Disk space exhausted during packaging
Source files are locked or in use

Solutions:

Regenerate the extension package
Ensure sufficient disk space
Close programs using extension files

Issue 4: Cannot Add Custom Properties

Possible Causes:

Property key or value is empty
Property key already exists

Solutions:

Ensure both key and value are filled
Use unique property key names
To modify existing properties, delete and re-add

GeneralUpdate Ecosystem

GeneralUpdate.Core - Core update component
GeneralUpdate.Extension - Extension management system
GeneralUpdate.ClientCore - Client update component
Quick Start Guide - GeneralUpdate quick start

External Resources

GeneralUpdate.Tools Source Code - GitHub repository
GeneralUpdate Main Project - Main framework project
Issue Feedback - Report issues and suggestions

Applicable To

Product	Versions
.NET	5, 6, 7, 8, 9, 10
.NET Framework	4.6.1+
.NET Standard	2.0
.NET Core	2.0+
Windows	10+
Linux	Ubuntu 20.04+, Debian 10+, Fedora 35+
macOS	10.15+ (Catalina and later)

Introduction​

Feature Descriptions​

1. Build Patch Package​

Function Introduction​

Parameter Description​

2. Build OSS Version Configuration​

Function Introduction​

Parameter Description​

3. Extension Manager​

Function Introduction​

Core Features​

Extension Manager Usage Guide​

Basic Information Fields​

Extension Name​

Display Name​

Version​

Description​

Publisher​

License​

Categories​

Path Configuration​

Extension Directory​

Export Path​

Dependencies​

Dependencies​

Version Compatibility​

Min Host Version​

Max Host Version​

Platform and Format​

Format​

Release Date​

Platform​

Options​

Pre-release​

Custom Properties​

Enable Custom Properties​

Add Custom Properties​

Operation Workflow​

Complete Steps to Create an Extension Package​

Step 1: Prepare Extension Files​

Step 2: Open Extension Manager​

Step 3: Fill in Basic Information​

Step 4: Configure Paths​

Step 5: Configure Dependencies and Compatibility (Optional)​

Step 6: Select Platform and Options​

Step 7: Add Custom Properties (Optional)​

Step 8: Build Extension Package​

Step 9: Verify Extension Package​

Clear Form​

Output Results​

Generated Extension Package Structure​

manifest.json File Content​

Field Mapping Description​

Best Practices​

Naming Conventions​

Directory Organization​

Version Compatibility Management​

Dependency Management​

Custom Properties Usage​

Testing and Validation​

Release Management​

Troubleshooting​

Common Issues​

Issue 1: Build Failed​

Issue 2: Validation Error​

Issue 3: Generated Package Cannot Be Extracted​

Issue 4: Cannot Add Custom Properties​

Related Documentation​

GeneralUpdate Ecosystem​

External Resources​

Applicable To​

Introduction

Feature Descriptions

1. Build Patch Package

Function Introduction

Parameter Description

2. Build OSS Version Configuration

Function Introduction

Parameter Description

3. Extension Manager

Function Introduction

Core Features

Extension Manager Usage Guide

Basic Information Fields

Extension Name

Display Name

Version

Description

Publisher

License

Categories

Path Configuration

Extension Directory

Export Path

Dependencies

Dependencies

Version Compatibility

Min Host Version

Max Host Version

Platform and Format

Format

Release Date

Platform

Options

Pre-release

Custom Properties

Enable Custom Properties

Add Custom Properties

Operation Workflow

Complete Steps to Create an Extension Package

Step 1: Prepare Extension Files

Step 2: Open Extension Manager

Step 3: Fill in Basic Information

Step 4: Configure Paths

Step 5: Configure Dependencies and Compatibility (Optional)

Step 6: Select Platform and Options

Step 7: Add Custom Properties (Optional)

Step 8: Build Extension Package

Step 9: Verify Extension Package

Clear Form

Output Results

Generated Extension Package Structure

manifest.json File Content

Field Mapping Description

Best Practices

Naming Conventions

Directory Organization

Version Compatibility Management

Dependency Management

Custom Properties Usage

Testing and Validation

Release Management

Troubleshooting

Common Issues

Issue 1: Build Failed

Issue 2: Validation Error

Issue 3: Generated Package Cannot Be Extracted

Issue 4: Cannot Add Custom Properties

Related Documentation

GeneralUpdate Ecosystem

External Resources

Applicable To
